PBOX29HB Smart Positioning Box

A cost-effective, high-precision GNSS RTK Receiver with integrated Dead-Reckoning. Designed for ride-share, fleet monitoring, and navigation tracking apps.

View Specifications Request Datasheet

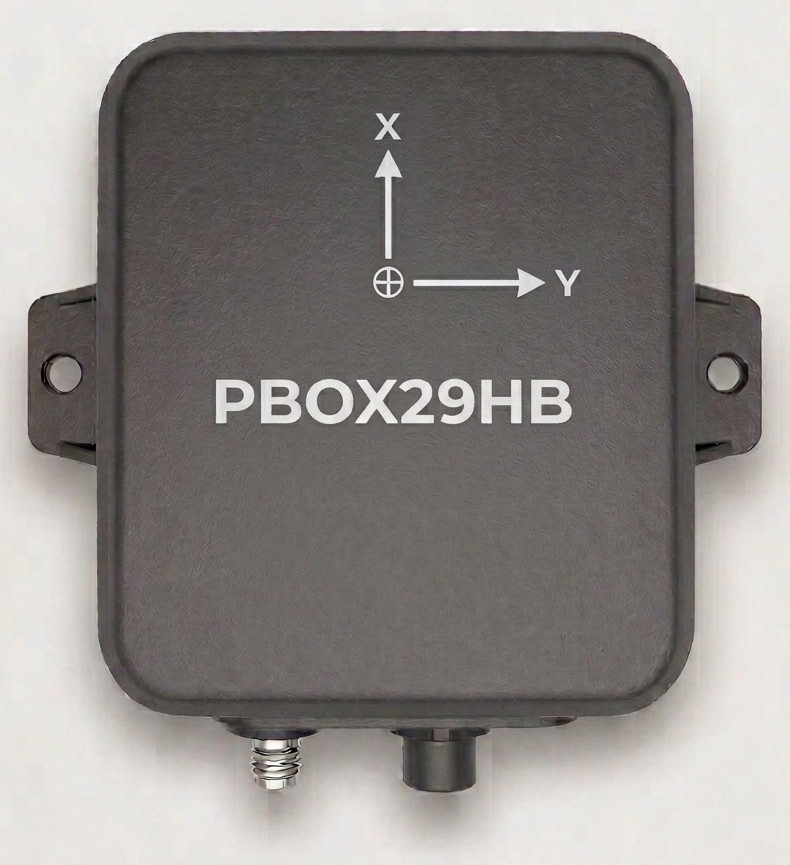

PBOX29HB GNSS RTK receiver: a black enclosure with two mounting tabs, the X/Y axis reference frame printed on the lid, and the antenna connector underneath.

Product Overview

One box, ready to mount

The antenna, the dual-band RTK receiver and the 6-axis IMU all sit inside a single enclosure, so there is no separate antenna to mount and no extra cable run — fit the box, run one power cable, and it starts tracking.

  • 10 cm accuracy when RTK fixed, converging in under 10 seconds.
  • Dead-reckoning from the built-in IMU keeps the track alive under canopies, bridges and tunnels.
  • Tracks GPS, GLONASS, Galileo, BDS and QZSS on L1/L5, E1/E5a and B1I/B2a.
  • Under 200 g and under 0.9 W, so it drops into ride-share, fleet and navigation installations.

Engineered for Precision

Built-in triple-frequency antenna, dual-band GNSS receiver, and IMU sensor to deliver high availability and accuracy position.

RTK Precision

Achieves 10cm or better accuracy when RTK fixed, with ultra-fast convergence in under 10 seconds.

Dead-Reckoning (DR)

Built-in 6-axis IMU ensures reliable tracking under canopies, bridges, and tunnels with < 0.5% distance error.

Triple-Frequency Antenna

High-quality patch antenna matching the performance of much more expensive models. Roof or dashboard mountable.

Low Power & Compact

Weighs less than 200g and consumes under 0.9W, powered conveniently via standard USB-A.

Technical Specifications

Detailed performance metrics for the PBOX29HB GNSS RTK Receiver.

GNSS & Positioning

ConstellationsGPS, GLONASS, Galileo, BDS, QZSS
BandsL1 C/A, L5, E1, E5a, B1I, B2a
Autonomous Accuracy1m
RTK Accuracy< 0.1m + 1ppm
RTK Convergence< 10s
TTFF (Cold/Warm/Hot)26s / 16s / 1s
Sensitivity (Acq/Track)-145 dBm / -165 dBm
Nav Update Rate1Hz / 10Hz

Dead-Reckoning & IMU

Sensor6-Axis IMU
DR Error (with speed)< 0.5% of distance
DR Error (without speed)< 4% of distance
IMU Raw Data Rate100 Hz (max)
Velocity Accuracy0.03 m/s
1PPS Signal Accuracy20 ns
Max Altitude10,000 m
Max Velocity / Accel500 m/s / 4 g

Physical & Environmental

< 200g

Weight

< 0.9W

Power Consumption

USB-A

Power Supply

Seamless Android App Integration

The companion Android App connects effortlessly via Bluetooth, turning your mobile device into a powerful command center.

  • Receive and store raw GNSS data and navigation solutions in real-time.
  • Feed RTK correction data directly to the GNSS receiver.
  • Visualize your position trajectory in real time on a dynamic map window.
Download App v1.0.14

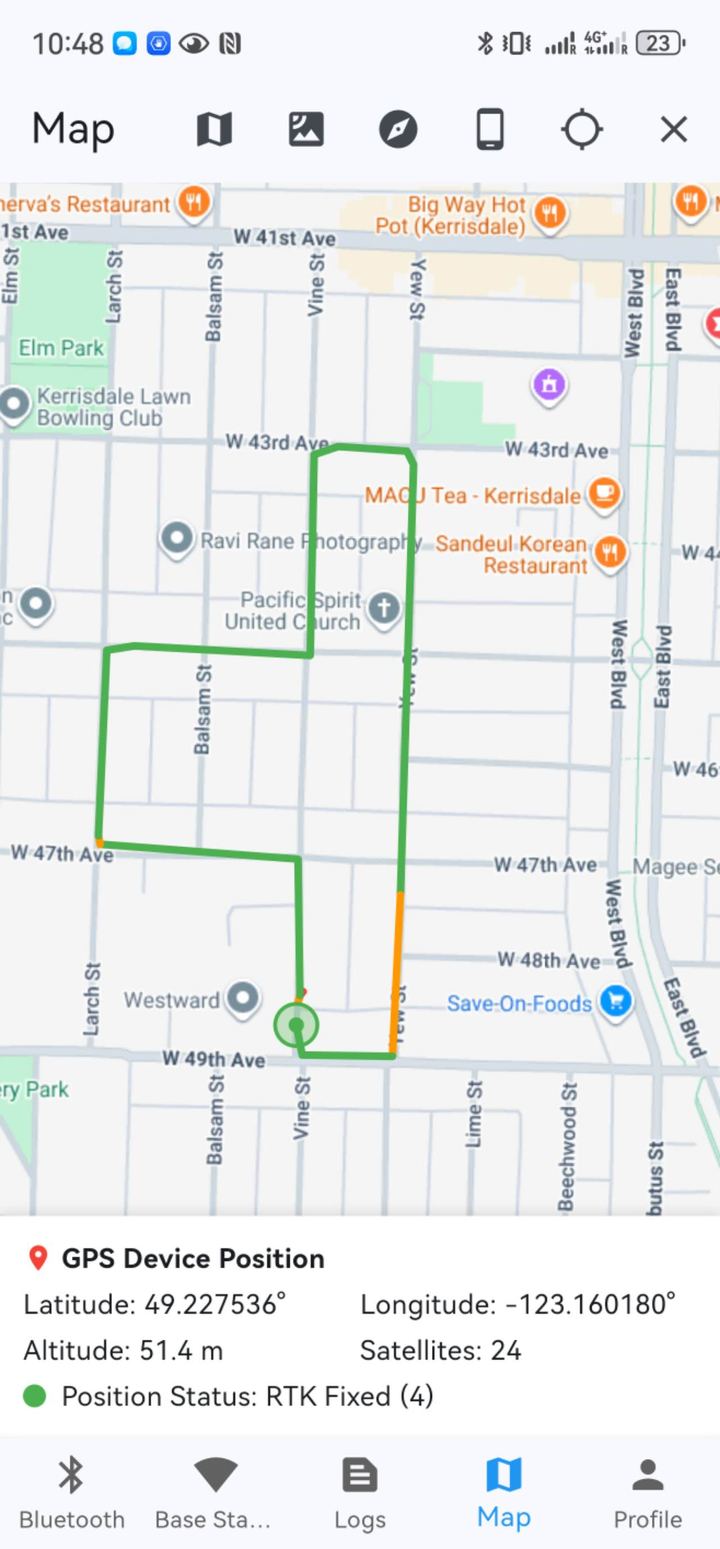

PBOX29HB Android App — real-time RTK trajectory map
